File:Cpc to scart rgb sw.png

Error creating thumbnail: Unable to save thumbnail to destination

Original file (2,333 × 1,653 pixels, file size: 149 KB, MIME type: image/png)

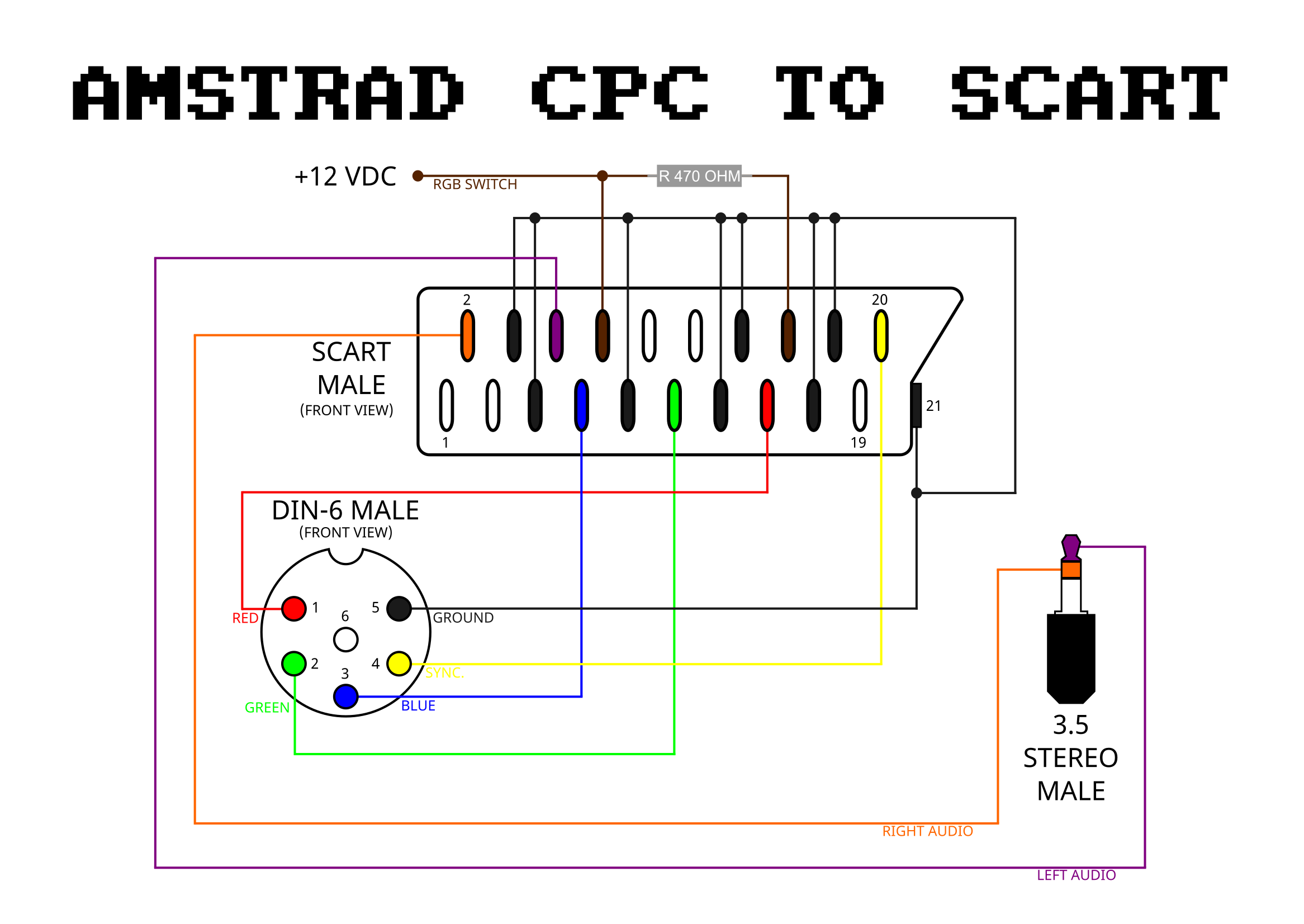

CPC to Scart, with RGB auto switching. PNG file.

File history

Click on a date/time to view the file as it appeared at that time.

	Date/Time	Thumbnail	Dimensions	User	Comment
current	18:13, 12 May 2024	Error creating thumbnail: Unable to save thumbnail to destination	2,333 × 1,653 (149 KB)	Forcy (talk \| contribs)	Resistor changed from 30 ohm to 470 ohm, in order to get a most compatible RGB switching.

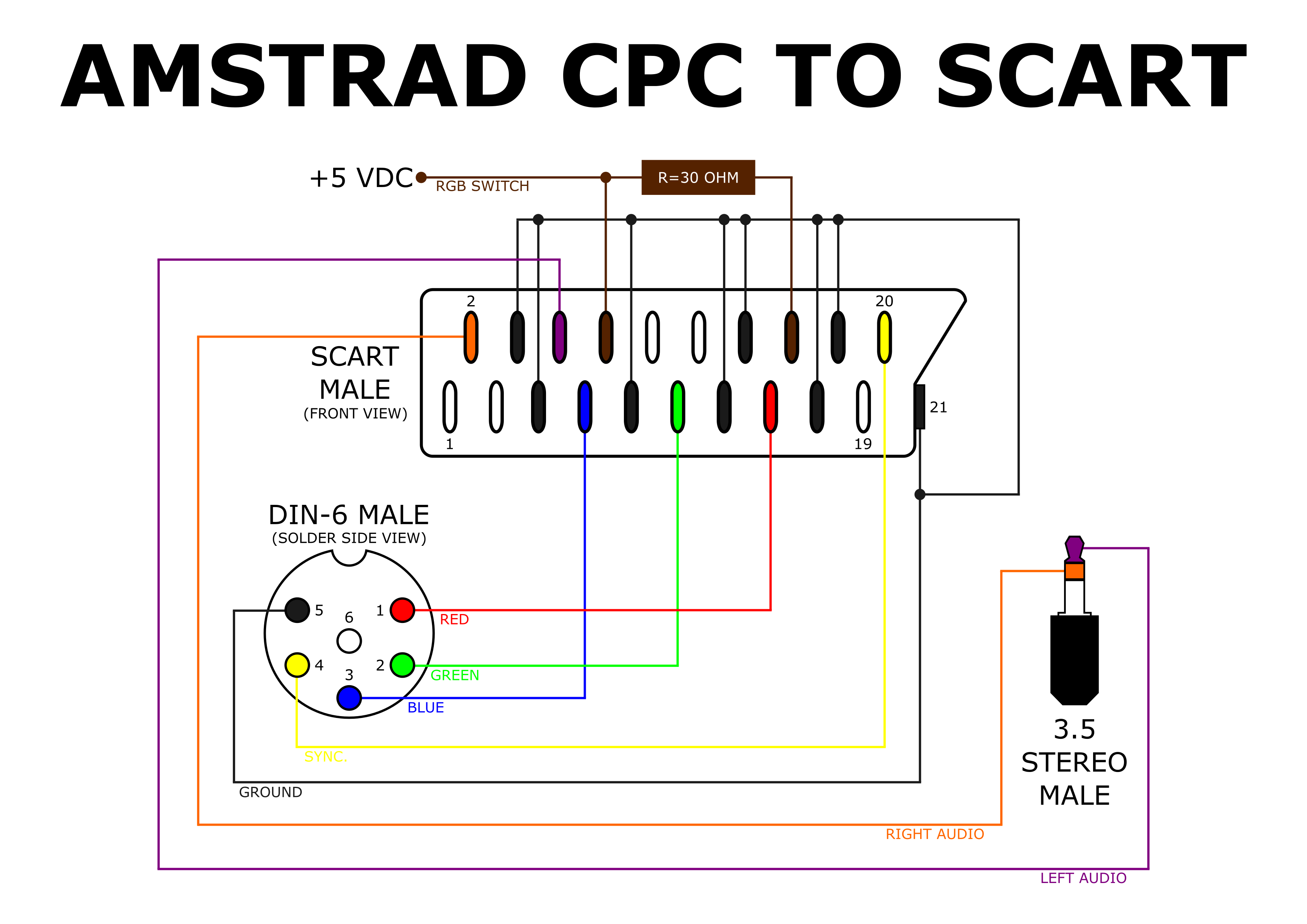

	19:48, 6 February 2017	Error creating thumbnail: Unable to save thumbnail to destination	3,507 × 2,480 (290 KB)	Forcy (talk \| contribs)	CPC to Scart, with RGB auto switching. PNG file.

You cannot overwrite this file.

The following file is a duplicate of this file (more details):

The following page uses this file:

This file contains additional information, probably added from the digital camera or scanner used to create or digitize it.

If the file has been modified from its original state, some details may not fully reflect the modified file.

Short title	AMSTRAD CPC TO SCART
Author	PABLO FORCÃN SOLER
Copyright holder	CC0 Public Domain Dedication http://creativecommons.org/publicdomain/zero/1.0/
Horizontal resolution	78.74 dpc
Vertical resolution	78.74 dpc
Software used	www.inkscape.org
Date and time of digitizing	03/02/2017
